Copyright ©2011 XBRL International Inc., All Rights Reserved.
Circulation of this Public Working Draft is unrestricted. This document is normative. Other documents may supersede this document. Recipients are invited to submit comments to rendering-feedback@xbrl.org, and to submit notification of any relevant patent rights of which they are aware and provide supporting documentation.
This document specifies semantics and syntax constraints for tables. Tables define subsets of the facts and fact related information, defined by a DTS, and specify representation of those facts in a Cartesian coordinate system.
1 Victor Morilla:An alternative definition would ensure that the table linkbase is not
instance specific. A possible alternative would describe a table as representing selected facts from a "universe of facts"
2 Victor Morilla:A table represents facts. Only facts. That does
not mean that we can render fact related information using formatting
rules; but formatting rules are not part of this specification.
Moreover, a market tool could render the value and its unit, provide a popup window
to display footnotes and let the user decide, using application options,
whether to represent other properties. An open question is whether it is necessary
to force users to provide all those details in a taxonomy.
3 Hugh Wallis:The above comments will be resolved following feedback from within the Working Group and from the public
4 Hugh Wallis:It is still under discussion as to whether the following 2 sentences should be included here. Omitting them would serve to generalise
this specification and not tie it to rendering specifically.
5 Hugh Wallis:The WG has not addressed this point yet - one suggestion is to integrate with multiple-instances formula features using selection axis.
Feedback on this point is welcomed.
6 Victor Morilla:Think about proper wording here
7 Hugh Wallis:The above two paragraphs are still under discussion as they tend to tie this specification closely to the specific rendering use case.
8 Herm Fischer:Need further research. It is possible that this can only apply to theruleAxis when dimension members are
not involved, but otherwise it is common to have tree branches with no leafs, particularly
where multiple choices of member or taxonomy namespace years may be involved. I think a dimensionAxis
should always have a cardinality of 1 for this purpose (even if no members).
9 Herm Fischer:The rendering linkbase (Goto-san's specs) do allow a zero-cardinality
x-axis with the y being relationship tree, to just present the relationship tree labels with
no data columns. Perhaps this should be allowed too.
10 Victor Morilla:This will probably be moved from ths specification into the rendering specification. However it is left in this draft to indicate to
reviewers the direction of the WG thinking on the application of this specification to rendering.
11 Herm Fischer:Add description of partitioning by uncovered aspects, and implementation-defined way of
handling multiple table views that result from such partitions.
1 Introduction
2 Namespaces and namespace prefixes
3 XPath usage
4 Class Models
5 Tables
6 Axes
6.1 Predefined Axes
6.1.1 Coordinates Order
6.1.2 axis-subtree relationships
6.2 Open Axes
6.3 Axis Requirements
6.4 Table-axis relationships
6.4.1 Table-axis arcs
7 Table Filters
7.1 Table-filter relationships
7.1.1 Table-filter arcs
8 Table Source
9 Graphical Representation of Tables
10 Set of Coordinates
11 Predefined Axis
12 Syntax
13 Processing model (definition of functions)
A Normative schema
B References
C Intellectual property status (non-normative)
D Acknowledgements (non-normative)
E Document history (non-normative)
F Errata corrections in this document
1 Namespaces and namespace prefixes
1 Table Model
2 Predefined Axis Model
abstract element
axis
axis headers
axis-subtree relationship
axis-type
children
complemented table-filter relationship
coordinate
covered by a table
covered by an axis
domain of the table
fact belonging to a table
matches
parent
position of a coordinate
table
table-axis arc
table-axis relationship
table-filter arc
table-filter relationship
xbrlte:aspectValueNotDefinedByCoordinate
xbrlte:axisAspectClash
xbrlte:axisAspectModelMismatch
xbrlte:axisDefinesNoAspects
xbrlte:openAxisDefinesMultipleAspects
xbrlte:predefinedAxisZeroCardinality
This document specifies semantics and syntax constraints for tables. tables specify subsets of the facts and fact related information, defined by a DTS, and specify representation of those facts in a Cartesian coordinate system. Facts may already exist, as in rendering an instance document, or be a virtual space in which they can be entered (possibly as editable cells in tables). They may be represented or edited by their value or any other aspect or property (period date, accuracy, footnote, or something deep in a typed dimension).
Tables can be used alone, by tools and consuming applications, or as part of containers in XBRL documents that generate complete reports.
Conceptual ideas that are used to define the table linkbase are defined abstractly and given concrete realization in syntax, in a manner that provides a base for extension specifications.
Tables specify semantics and syntax of hierarchical representations of facts that instantiate the concepts in XBRL taxonomies. These hierarchies are one of the basic building blocks of the specification, but also constitute by themselves a vehicle to communicate the meaning of those reporting concepts in a similar approach to that of the presentation linkbase, but enhanced to cover multidimensional information and more complex models.
Namespace prefixes [XML NAMES] will be used
for elements and attributes in
the form ns:name
where ns
is the
namespace prefix and name
is the local name.
Throughout this specification, the mappings
from namespace prefixes to actual namespaces are consistent
with Table 1.
The prefix column in Table 1 is non normative. The namespace URI column is normative.
Prefix | Namespace URI |
---|---|
table
|
http://xbrl.org/2011/table
|
xbrlte
|
http://xbrl.org/2011/table/error
|
link
|
http://www.xbrl.org/2003/linkbase
|
xbrli
|
http://www.xbrl.org/2003/instance
|
xfi
|
http://www.xbrl.org/2005/function/instance
|
xbrldi
|
http://xbrl.org/2006/xbrldi
|
xbrldt
|
http://xbrl.org/2005/xbrldt
|
xl
|
http://www.xbrl.org/2003/XLink
|
xlink
|
http://www.w3.org/1999/xlink
|
xs
|
http://www.w3.org/2001/XMLSchema
|
xsi
|
http://www.w3.org/2001/XMLSchema-instance
|
generic
|
http://xbrl.org/2007/generic
|
A table represents selected facts defined by a DTS and provides a reference representation of those facts following a matrix layout in a Cartesian space with a determined number of axes involved, including data provided by parameters and data derived from these facts. The facts of a table may exist in an XBRL instance for output rendering, or they may be descriptions of facts that may be entered to a form to produce a new or edited output XBRL instance.
[Victor Morilla: An alternative definition would ensure that the table linkbase is not instance specific. A possible alternative would describe a table as representing selected facts from a "universe of facts" ]
[Victor Morilla: A table represents facts. Only facts. That does not mean that we can render fact related information using formatting rules; but formatting rules are not part of this specification. Moreover, a market tool could render the value and its unit, provide a popup window to display footnotes and let the user decide, using application options, whether to represent other properties. An open question is whether it is necessary to force users to provide all those details in a taxonomy. ]
[Hugh Wallis: The above comments will be resolved following feedback from within the Working Group and from the public]
The data defined by a table is referred to as the domain of the table. Both the domain of a table and the mapping to Cartesian space are specified by axes and table-axis relationships. Additional constraints can be imposed to the domain of a table with the help of filters.
Facts that may participate or be entered in the domain of a table are identified by their aspects, according to its aspect model.
[Hugh Wallis: It is still under discussion as to whether the following 2 sentences should be included here. Omitting them would serve to generalise this specification and not tie it to rendering specifically.]
The rendering of a fact defaults to rendering its unscaled value. One can also render transformed and scaled values and fact-related data (such as attributes of the fact, values of its instance aspects, footnotes), and DTS information for the fact (element attributes, related resources, and relationship attributes).
Non-fact data allows representation of financial reports, and may selected for inclusion by named aspects dynamically into the domain of a table. This may include information from the instance, such as from contexts, footnotes, and custom attributes, corresponding information from the DTS, such as concepts based on their inter-relationships. Non fact data may also be incorporated into the rendering process by parameters, to provide information to the rendering processor such as report dates, title, and selection parameterization.
Multiple instances may participate in a manner that is still to be determined.
[Hugh Wallis: The WG has not addressed this point yet - one suggestion is to integrate with multiple-instances formula features using selection axis. Feedback on this point is welcomed.]
A table's semantics specify how data in its domain, split and categorized by specified aspects and named selections, are mapped to positions on the table axes. The aspects establish the layout along each axis. The domain of the table is determined by the Cartesian product of the sets of allowed combinations of each axis that meet the conditions defined by the filters of the table.
A fact is said to belong to a table if its aspects meet all the constraints expressed by the axes of the table.
An axis (plural: axes) represents a set of combinations of the values of a subset of the aspects of the data, and a certain arrangement of them along an imaginary line.
These aspects are referred to as the aspects covered by the axis.
Each one of the possible combinations of aspect values of an axis is referred to as a coordinate.
The axis disposition specifies the display orientation of its coordinates. This specification provides for three axis dispositions: x-axis, y-axis, and z-axis. The x-axis represents a horizontal arrangement of columns in a table, the y-axis represents a fourth-quadrant vertical progression of rows (except for right-to-left language cultures, where it is third-quadrant), and the z-axis represents an orthogonal axis of choices constraining the two-dimensional view. The x-axis horizontal column progression may be left-to-right, or right-to-left for tables in right-to-left language cultures (e.g. Arabic and Hebrew, to correspond to spreadsheet behaviour). The y-axis vertical column progression is always top to bottom. The z-axis may have multiple values, which can be used either for selection of display (such as by combo-boxes on a GUI) or for multiple tables (such as selected by tab, or output as successive document components).
Aspects that can be covered for facts include those of the dimensional and non-dimensional aspect models.
Aspect coverage can be specified by axes in a manner that allows a table to be used for either entry or display for fact data, and in a manner that allows a table to be used for only display of non-fact data (such as DTS relationships). (e.g., a table can be used for entry of instance data but not for entry of taxonomies.).
A fact matches an axis coordinate if, for every aspect covered by the axis, each aspect value of the fact corresponds to the aspect specified for the coordinate.
The aspects covered by an axis MUST be consistent with the aspect model specified by the aspect model identifier of the table.
Error code xbrlte:axisAspectModelMismatch MUST be thrown if the processing software encounters an axis covering aspects that are not defined in the aspect model of the table.
Every coordinate in an axis must provide a means of identifying values for each aspect covered by the axis. When a table is used for entry, each value must be deterministic; when used for display, values can be expressed by filtering.
Error code xbrlte:aspectValueNotDefinedByCoordinate MUST be thrown if the processing software encounters a coordinate that does not specify or provide a means for identifying values for an aspect covered by its axis.

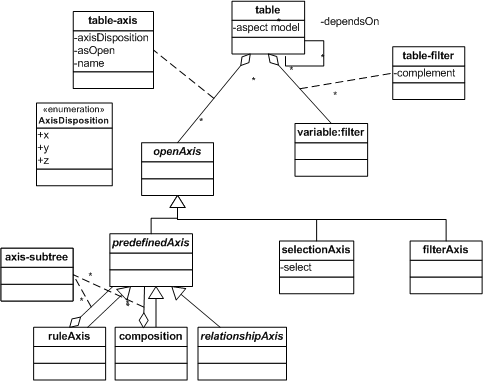

The set of axes of a table is determined by table-axis relationships between the table and its axes, as specified in Section 12.
A single axis may specify multiple aspects and is linear, multiple of the same axis are combined as a cross-product. (e.g., a single axis disposition of two dimensions may provide specific values of each dimension for each linear position, but two axes of one dimension each specify that the cross product of dimension values are to be displayed or entered.)
Two or more axes of a table MUST NOT cover common aspects.
Error code xbrlte:axisAspectClash MUST be thrown if the processing software encounters two axes in a table that cover common aspects.
Error code xbrlte:axisDefinesNoAspects MUST be thrown if the processing software encounters one axis with no aspects.
The aspects covered by a table are the union of the aspects covered by the axes of the table.
An ordered coordinates graphical representations of axes represents its coordinates along an imaginary line following a certain order. The position of a coordinate in a graphical representation of an axis is an sequence of positive integers expressing where each coordinate from the axis lies in the ordered representation (1-based to be compatible with the element-scheme XPointer). [Victor Morilla: Think about proper wording here]
Axis headers label the axes to communicate heading information about the cells at the intersection of rows and columns. Header information for a column is displayed at the top of a column. Header information for a row is displayed at the left of a row except for right-to-left tables, where it is displayed on the right of the row. The location to display z-axis and table headers is not constrained by this specification, but would usually be at the top of the table. Axis headers for axis dispositions that have multiple coordinate aspect values may use row and/or column spanning to graphically provide clarity of aspect coverage. Axis header information may be simplified when tables are rendered on media not meant primarily for human readability (such as CSV files, which lack a way to span or merge column headers).
Scrolling of tables may follow spreadsheet expectations, e.g., horizontal scrollbar on bottom, vertical on right for left-to-right tables and on left for right-to-left tables. A table rendering for human consumption may provide a way to fix row and column headers and allow cells to be scrolled independently.
The position of a coordinate in a set of axes of the same type is defined as the cardinality of the set of previous coordinates plus one. There may be multiple axes of the same type (such as multiple x axes where the coordinates are combined. A coordinate position is relative to the combined set of axes of the same type.
[Hugh Wallis: The above two paragraphs are still under discussion as they tend to tie this specification closely to the specific rendering use case.]
Axes can be classified into two groups: predefined and open axes
A predefined axis is an axis that fulfills the following requirements:
Error code xbrlte:predefinedAxisZeroCardinality MUST be thrown if the processing software encounters a predefined axis whose cardinality is zero.
[Herm Fischer: Need further research. It is possible that this can only apply to theruleAxis when dimension members are not involved, but otherwise it is common to have tree branches with no leafs, particularly where multiple choices of member or taxonomy namespace years may be involved. I think a dimensionAxis should always have a cardinality of 1 for this purpose (even if no members).][Herm Fischer: The rendering linkbase (Goto-san's specs) do allow a zero-cardinality x-axis with the y being relationship tree, to just present the relationship tree labels with no data columns. Perhaps this should be allowed too.]

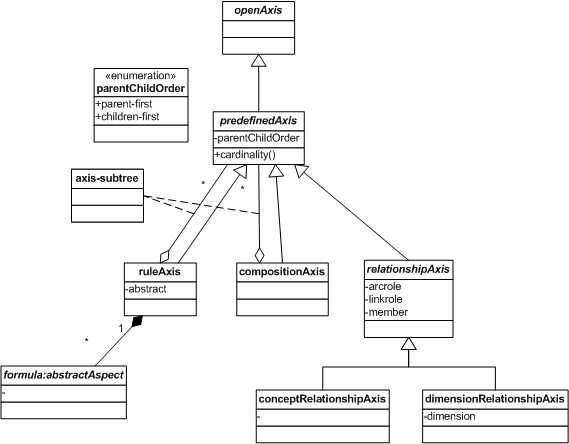

The figure below provides a model of the predefined axis.
Each predefined axis element may be composed of a subtree of
predefined axis elements, each representing a component in the header of the axis and determining the values of the aspects of the coordinates in the axis.
The subtree of an rule axis is established through axis-subtree relationships.
(No cycles are allowed, so the relationships must form a tree.)
The parent of an axis element C is the node source of an axis-subtree relationship whose target is the axis element C.
The root of all axis-subtree relationships in an rule axis is the axis node itself.
The children (singular: child) of a member P are the axis elements in the target of axis-member relationships whose source is the member P.
An abstract axis element is a predefined axis element that has the attribute @abstract
set to true
.
Each non-abstract rule axis corresponds to an axis coordinate. The cardinality of an aspect rule axis is equal to the number of non-abstract coordinates.
The order of the coordinates is defined in terms of the order of coordinates of the predefined axis. The order of coordinates is defined as follows:
@parentChildOrder
attribute of the axis.
This attribute establishes whether node children corresponding coordinates are placed before or after the coordinate corresponding to the parent
(e.g., parent before children would put a total before breakdowns, and the converse would put the total after the breakdowns).
A axis-subtree relationship
is a relationship between elements derived from the abstract <table:predefinedAxis>
type
expressed by an XLink arc.
To declare an axis-subtree relationship an XLink arc MUST:
http://xbrl.org/arcrole/2011/axis-subtree
<table:predefinedAxis>
type at the
starting resource of the arc
The arcrole value,
http://xbrl.org/arcrole/2011/axis-subtree
,
is declared in the normative schema supplied with this specification.
Axis-subtree relationships MUST be expressed by generic arcs. Violations of this requirement can be detected by validation against the XBRL Specification [XBRL 2.1].
An open axis is an axis that fulfills the following requirements:
Error code xbrlte:openAxisDefinesMultipleAspects MUST be thrown if the processing software encounters an open axis that covers more than one aspect.
The Filter axis and Selection axis are examples of open axes. These are described in their separate respective documents.
The concept of axis defined in this specification is abstract, and thus, it is meant to be extended by other specifications in charge of defining concrete implementations of axes. This chapter defines the set of requirements that those specification must follow.
A table-axis relationship
is a relationship between an
<table:table>
and an element derived from the abstract <table:openAxis>
type
expressed by an XLink arc.
To declare an table-axis relationship an XLink arc MUST:
http://xbrl.org/arcrole/2011/table-axis
<table:table>
element at the
starting resource of the arc
The arcrole value,
http://xbrl.org/arcrole/2011/table-axis
,
is declared in the normative schema supplied with this specification.
Table-axis relationships MUST be expressed by table-axis arcs. Violations of this requirement can be detected by validation against the XBRL Specification [XBRL 2.1].
A table-axis arc is expressed by
the <table:tableAxisArc>
element.
The syntax for the
<variable:tableAxisArc>
element is defined by the normative schema supplied with this specification.
Tables can be associated to filters through table-filter relationships. (A filter axis also has a fiter, described in the filter axis specification.)
The domain of the table is limited to those facts that meet the conditions defined by all the filters of the table. A filter may be complemented, by an attribute on the table-filter relationship, which simply inverts the filter’s effect. (For example, a dimension filter listing specific dimension member(s) but complemented, excludes facts with those members from the domain of the table.)
The context item for XPath expressions of table filters is each candidate fact being considered to meet the conditions that would make it an accepted member of the domain of the table.
A table-filter relationship
is a relationship between an
<table:table>
and a <variable:filter>
expressed by an XLink arc.
To declare an table-filter relationship an XLink arc MUST:
http://xbrl.org/arcrole/2011/table-filter
<table:table>
element at the
starting resource of the arc
The arcrole value,
http://xbrl.org/arcrole/2011/table-filter
,
is declared in the normative schema supplied with this specification.
Table-filter relationships MUST be expressed by table-filter arcs. Violations of this requirement can be detected by validation against the XBRL Specification [XBRL 2.1].
A complemented table-filter relationship is an table-filter relationship
that is expressed by an arc with a @complement
attribute that has a value of true
.
A table with a complemented table-filter relationship to a filter uses the filter complement in its implied XPath expression rather than the filter itself.
A table-filter relationship does not cover any aspect.
A table-filter arc is expressed by
the <table:tableFilterArc>
element.
The syntax for the
<variable:tableFilterArc>
element is defined by the normative schema supplied with this specification.
The source for input domain to a table is the domain objects considered for table filter matching, axes coordinate matching, and display in a cell value. The source for a table used as an entry form is an instance that does not have the facts to be input (or may have facts with earlier values, to be edited).
This specification provides a means to associate data with coordinate positions for rendering in a manner independent of presentation formatting. Issues of font select, color, background, component assembly into documents, are left for the XBRL Rendering Specification. This specification does, however, provide for scaling, number transformation, and coordinate axes ordering.
Table-axis relationships include an attribute to help the taxonomy author to specify the representation of the axis of the table in reference a bi-dimensional space.
This attribute ( @axisDisposition
) specifies the Cartesian axis where the table axis should be projected on to. The possible values are:
A set of coordinates is a list of zero or more aspects (reference to the variables specification) and values for those aspects. A set of coordinates MUST contain only a single value for each aspect included. Those aspects and their respective values are referred to as explicit aspect values of the set of coordinates.
A set of coordinates MAY contain labels and references as well. Those labels and references MAY be generic ones (references to generic labels and references) or standard ones (references to XBRL 2.1) depending on the specific representation of the set of coordinates. Nevertheless, these labels and references are to be treated in the same way no matter their syntactic representation.
A generic or standard label for a coordinate provides the row or column header ordinary label. It may be provided in multiple languages, but using the standard label role. Additional labels may include references and header codes, which render in additional row header or column header cells, in order of their relationships. If there is at least coordinate on any type of axis with such additional labels, columns are reserved for all other headers on that type of axis (e.g., if one x-axis column coordinate a reference label, all the column headers will have a reference label cell, even if empty).
A set of coordinates can be abstract. This property will have consequences on the way it is rendered on a table, according to the class of axis (For predefined axes where the aspect represents a breakdown, the non-abstract coordinates will reserve an additional coordinate value for their total).
An axis is an ordered tree of sets of coordinates. A set of coordinates, in the context of an axis, has a set implicit aspect values; these aspect values are those aspect values (explicit or implicit) of its parent set of coordinates that are not explicitly defined at the child. The aspect values of a set of coordinates in the context of an axis are the union of its explicit aspect values plus the implicit ones.
An axis MUST define a traverse order for the tree of sets of coordinates that conforms the axis. This order is important when a set of coordinates represents a hierarchy of data, such as a dimension with a default representing a total, and subtree elements representing breakdown values, or a linkbase of aggregative sums and their breakdown details. The order is either parents first (total at top of breakdown items) or children first (total below breakdown items).
Axes are represented by elements in the substitution group for the abstract <table:axis>
element.
This specification does not provide any specific axis element, but provides the base for other specifications that define specific axes elements.
An axis element may furthermore specify these attributes:
[Victor Morilla: This will probably be moved from ths specification into the rendering specification. However it is left in this draft to indicate to reviewers the direction of the WG thinking on the application of this specification to rendering.]
@value
: An XPath 2 expression to specify an output XPath expression intended to select information related to fact,
such as an attribute of the fact, context, footnote, or any DTS information obtainable by Function Registry or custom function, parameter,
and reference to any selection axis in effect for the coordinates being rendered. @value
is specified, the coordinate is output only, and cannot be used as an form entry cell. @value
and @format
are both specified, the @value
XPath expression result is passed to the @format
transformation for rendering
(e.g., to select a numeric or date from attribute, context value, or footnote resource and perform indicated transformation on it.) @scale
: An integer to specify scaling (powers of 10) on output rendering and input from an entry form. @negate
: A Boolean to specify that a numeric rendered (output), or edited value (on input) is sign-flipped from the value in the instance.
Corresponds to negated label roles in presentation linkbases, to support display of balance sheet items that also appear in cash flow statements
(where some require sign flipping). @format
: A QName of a transformation registry transform. Transforms are applied both on output and input.
Formatting is also possible by using the xfi:format-number
or any other function in @value
,
which would restrict the coordinate cell to output rendering only.
The context item for @value
is the fact selected for a coordinate (predefined axes), or the selection sequence item (selection axes).
These attributes are inherited (when used in predefined axes and subtrees), so that a @format
, @scale
, or @negate
may be specified on an ancestor, and need not be respecified on descendant subtree elements.
However descendants re-specifying an attribute override any attribute value inherited (or cancellation of an inherited attribute
is specified by an empty string attribute value).
A table linkbase is compiled (prepared for processing) by analysing the relationships from table to axes. It is executed by preparing header information, processing its domain (such as facts from an instance) to the facts, assigning values to cells as facts match coordinates of the rows and columns of the cells, and possible compaction for viewing (removal of axes having no data in sparse matrices).
The compilation process may analyse axes by their type (z-axis, x-axis, and y-axis dispositions) to find the axes of those types and evaluate their coordinates (those that can be determined in the absence of processing facts). Aspect clashes can be identified, XPath expressions can be compiled and checked for references to existing parameters and any variables allowed, and for the case of predefined axes, the number of coordinates along the x- and y-axes types identified.
The execution process may prepare headers for x-axis and y-axis dispositions. If data (source facts) exist, they may be mapped to coordinates, and open axes processed to determine aspect population. Column and row coordinates of open axes may be allocated deterministically in advance for explicit dimension data, but must be allocated after analysing data when applying to typed dimensions of unknown content values, or relationship axes that are determined dynamically.
[Herm Fischer: Add description of partitioning by uncovered aspects, and implementation-defined way of handling multiple table views that result from such partitions.]
The following is the XML schema provided as part of this specification. This is normative. Non-normative versions (which should be identical to these except for appropriate comments indicating their non-normative status) are also provided as separate files for convenience of users of the specification.
NOTE: (non-normative) Following the schema maintenance policy of XBRL International, it is the intent (but is not guaranteed) that the location of non-normative versions of these schemas on the web will be as follows:
http://www.xbrl.org/2011/
- during the drafting process for
this specification this directory should contain a copy of the
most recent published version of the schema at
http://www.xbrl.org/2011/table.xsd.
This document and translations of it may be copied and furnished to others, and derivative works that comment on or otherwise explain it or assist in its implementation may be prepared, copied, published and distributed, in whole or in part, without restriction of any kind, provided that the above copyright notice and this paragraph are included on all such copies and derivative works. However, this document itself may not be modified in any way, such as by removing the copyright notice or references to XBRL International or XBRL organizations, except as required to translate it into languages other than English. Members of XBRL International agree to grant certain licenses under the XBRL International Intellectual Property Policy (www.xbrl.org/legal).
This document and the information contained herein is provided on an "AS IS" basis and XBRL INTERNATIONAL DISCLAIMS ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY WARRANTY THAT THE USE OF THE INFORMATION HEREIN WILL NOT INFRINGE ANY RIGHTS OR ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
The attention of users of this document is directed to the possibility that compliance with or adoption of XBRL International specifications may require use of an invention covered by patent rights. XBRL International shall not be responsible for identifying patents for which a license may be required by any XBRL International specification, or for conducting legal inquiries into the legal validity or scope of those patents that are brought to its attention. XBRL International specifications are prospective and advisory only. Prospective users are responsible for protecting themselves against liability for infringement of patents. XBRL International takes no position regarding the validity or scope of any intellectual property or other rights that might be claimed to pertain to the implementation or use of the technology described in this document or the extent to which any license under such rights might or might not be available; neither does it represent that it has made any effort to identify any such rights. Members of XBRL International agree to grant certain licenses under the XBRL International Intellectual Property Policy (www.xbrl.org/legal).
This document could not have been written without the contributions of many people.
Date | Author | Details |
---|---|---|
01 October 2011 | Herm Fischer |
Initial draft |
09 October 2011 | Victor Morilla |
Added comments on issues that require further disucssion |
11 October 2011 | Hugh Wallis |
Identified unresolved issues and commented them for publication and feedback solicitation |
28 October 2011 | Herm Fischer |
Working group updates: position of coordinate in axes |
03 November 2011 | Herm Fischer |
Working group updates: replace predefinedAxis model with subtrees of ruleAxes and compositions of ruleAxes with relationshipAxes. Replace axis-member notion with that of axis subtree composition. |
05 December 2011 | Herm Fischer |
Update class diagram, provide schema definitions. |
19 December 2011 | Herm Fischer |
Editorial updates suggested by Roland Hommes in WG e-mail of 2011-12-08. |
This appendix contains a list of the errata corrections that have been incorporated into this document. This represents all those errata corrections that have been approved by the XBRL International Rendering Working Group up to and including 21 December 2011.
No errata have been incorporated into this document.
